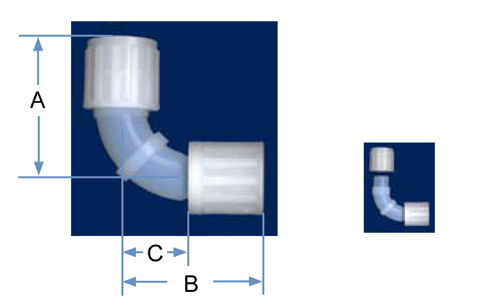

T = Tight Flare,Flares 1/4” to 3/4” have close tolerance technology, i.e., location fromcenterline is +/- 0.005”. 1” flares have a tolerance of +/-0.03”
PFA
Part No.
|
Tube O.D.
|
Orifice
|
A
|
B
|
C
|
UES44TN-1
|
1/4
|
.15
|
1.62
|
1.78
|
.79
|
UES66TN-1
|
3/8
|
.25
|
1.83
|
1.97
|
.93
|
UES88TN-1
|
1/2
|
.38
|
2.05
|
2.15
|
1.05
|
UES1212TN-1
|
3/4
|
.63
|
2.33
|
2.56
|
1.31
|
UES1616TN-1
|
1
|
.88
|
2.78
|
3.22
|
1.72
|
